What is the difference between the famous Atom FitPC2 and new Apollo Lake Fitlet2? We compared the two micro PCs powered by Intel CPUs.

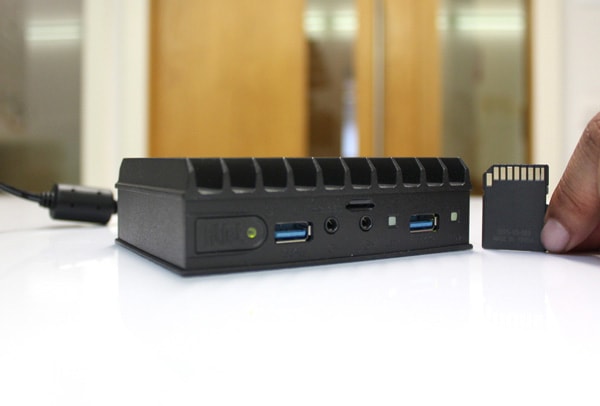

IOT-GATE-APL (Fitlet2) is a unique Fanless micro-sized PC powered by dual and quad core Intel Apollo Lake processors. With latest technology, extreme reliability, enhanced flexibility and low power consumption, IOT-GATE-APL (Fitlet2) is a beautifully designed PC for IoT applications..
IOT-GATE-APL (Fitlet2) is the optimal IoT gateway for smart building, transportation and real-time data management thanks to Atom Apollo Lake processors, especially developed for the IoT world. With extensive connectivity options and optional application specific FACET (Function and Connectivity Extension T-Cards) modules can be installed.
Best Designed Apollo Lake Micro PC
IOT-GATE-APL (Fitlet2) is the best engineered IoT PC in the market. This gateway PC is built around Atom E3950 Apollo Lake processors which have been especially developed by Intel for industrial IoT applications, bringing improved data communications and faster processing tasks thanks to 64-bit quad-core CPU performance in a case as small as 112 x 84 x 34 mm.
Built-in heat sink version measures 112 x 84 x 34 mm and offers new cooling fins for optimal heat dissipation.
On top of this, you add rich customisable connectivity and best-in-class reliability and you get the perfect micro-sized PC for fire alarm systems, building security, remote diagnosis, predictive maintenance or fleet monitoring.
Intel Atom Apollo Lake or Celeron Processors
The CPU at the heart of the PC is crucial. We offer you quality and flexibility with 3 types of processors. For fast data communications and processing needs, two quad-core processors are available. The E3950 is based on the Intel® Atom™ Processor x7 Series with 4 cores, a CPU speed range of 1.6 to 2 GHz and low power consumption from 5W. A processing performance that not long ago could not be fitted in such a small passively-cooled footprint due to higher power consumption.

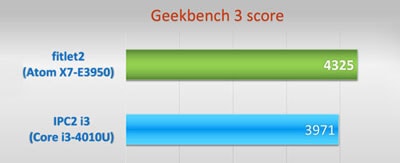

Geekbench3 score for J3455 is 4700
Alternatively, the J3455 comes with the Intel® Celeron® Processor J Series, also has 4 cores, a CPU speed range of 1.5 to 2.3 GHz. For low processing performance requirements, a dual-core Intel® Atom™ Processor x5 Series option (with E3930) is available on demand. All models come with outstanding graphics capabilities through the Intel® HD Graphics 505/500 processors.
24/7 Reliability & Energy-Efficiency
With no moving parts, Fanless technology ensures the best resistance to cold or dusty environments. However, thermal design has been enhanced with new cooling fins and built-in heat sink, enabling the PC to support a wider operating temperatures range of between -40 and +85C.
Energy efficiency has been improved with a low power consumption of 5W-15W (depending on CPU type, system load, devices and peripherals). We can help you test and estimate power consumption and CPU TDP configuration. Thanks to M.2 mSATA, note that the booting time and the energy efficiency of the storage have improved. Selectable power source (15-36V) is also available.
Rich Standard Connectivity, Expandable via FACET

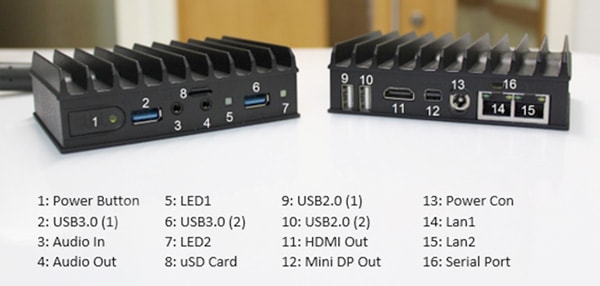

Versatility is impressive on IOT-GATE-APL (Fitlet2). Standard connectivity already packs comprehensible features with dual Ethernet ports, dual 4K video outputs (appreciable for CCTV and inspection applications), 1x microSD card slot, 1x serial port, 2 GPIO LED, 2x USB 3.0 ports and 2x USB 2.0 ports.

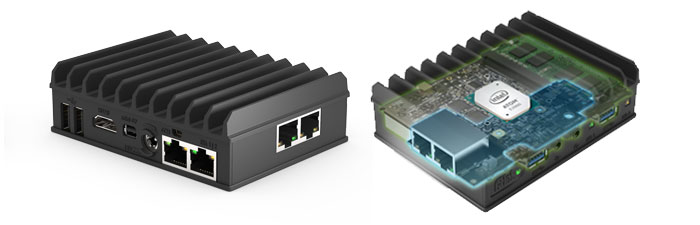

Standard connectivity. Add more amazing options with FACET cards.
On top of that, the Function And Connectivity T-card (or FACET card) provides further customisation choices such as additional
- Dual Gbit Ethernet
- 4 extra USB 2.0 ports
- mini PCIe + Micro SIM + M.2 E-Key + M.2 M-Key 2280
- M.2 B-Key + Micro SIM + M.2. E-Key + M.2. M-Key 2280
- eDP 1.3 and I2C
- plus PoE, Optical LAN and more in development
Enabling customers to configure the Fanless PC for their specific needs.
Use the dual Ethernet FACET to get a total of 4 GbE LAN Ports.
RAM options go from 2GB to 16GB. Don’t be surprised to find 16GB. This is very impressive for a form factor this small, and against all other PCs with x7 E3950 or J3455 in the market, like the NUC version, which are commercialised with up to 8GB.
Note that, with latest storage technology (M.2 mSATA), the booting time and the energy efficiency of the storage have improved.

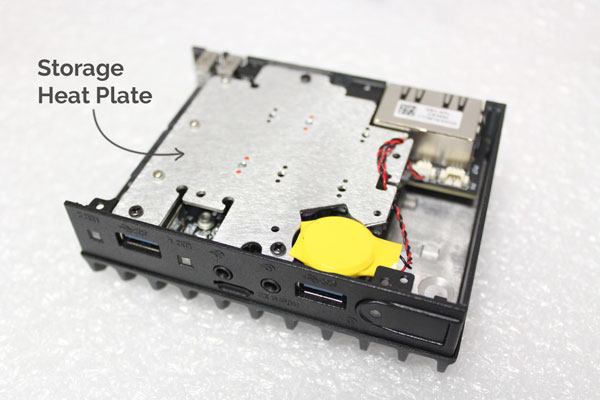

New and ultra-efficient storage heat plate for best passive cooling.
Complex metal 3D design with interlocking parts yet easily customisable (RAM, storage, extension cards).
Windows 10 IoT Enterprise LTSB
We are offering Windows 10 IoT Enterprise LTSB (entry licence) on Fitlet2 and recommend it for successful IoT and embedded projects as it ensures stable, secure and connected systems and solutions. Other OS options like Windows 10 Pro and Linux options can be installed by our technicians.
OS available: Windows 10 IoT Enterprise LTSB, Windows 10 Pro, Linux Mint
Compatible with: Windows 10 variants, Linux variants, ESXi, FreeBSD...
We aim to offer reliable and tailored solutions to our customers. That's why we take time to understand your needs and applications and offer a five-year warranty with full support. Our account managers and technical team will be here to help with project development including customisation, testing and optimisation.
Not only Fitlet2 offers impressive features and reliability but prices are extremely competitive. Barebone prices start from just £160 (customisation and volume pricing available). Fill this form to get your personalised quote.
- IoT Gateway
- Embedded CCTV systems
- Industrial & Control
- Industrial supervision
- In-Vehicle systems
- Real-Time Monitoring
- Smart Building
We offer you a 5-Year warranty which includes full support, technical expertise and life cycle management.
Consult datasheets for full product specifications and options (CPU, storage, memory, temperature, OS...).
- Fit Headless
- Fit Headless 4K
- Mini UPS Battery
- DIN rail Bracket
Comparing Fitlet2 and FitPC2
Fitlet2 FAQSee Product FAQ
Fitlet2 has it all. Small size, best CPU technology, full customisation, affordability and versatility. It is the best IoT fanless and micro PC in the market. Get a quotation or discuss your application with our experts today: just complete our contact form.
